Specification:
SPECIFICATIONS：
Anderson Connector ×1 (50A-Input)
Anderson Connector ×2 (50A-Output)
Battery Switch ×1 (100A 32V DC.max)
Power Socket ×2 (12V 20A ／24V10A DC)
USB Type-a×4 (5V 2.4A DC)
USB Type-c ×1 (PD 5.0V~20V、Max：60W)
Voltmeter ×1 Rating：6V~30V
Fuse Box ×1 (100A 32V DC.max)
Fuse :10A×2、30A×2
Wire :10269／8AWG &10269／10AWG & 1015／16AWG
Dimensions (Lx W x H) :140×160×85 mm
Shell Material :Nylon
Key Features:

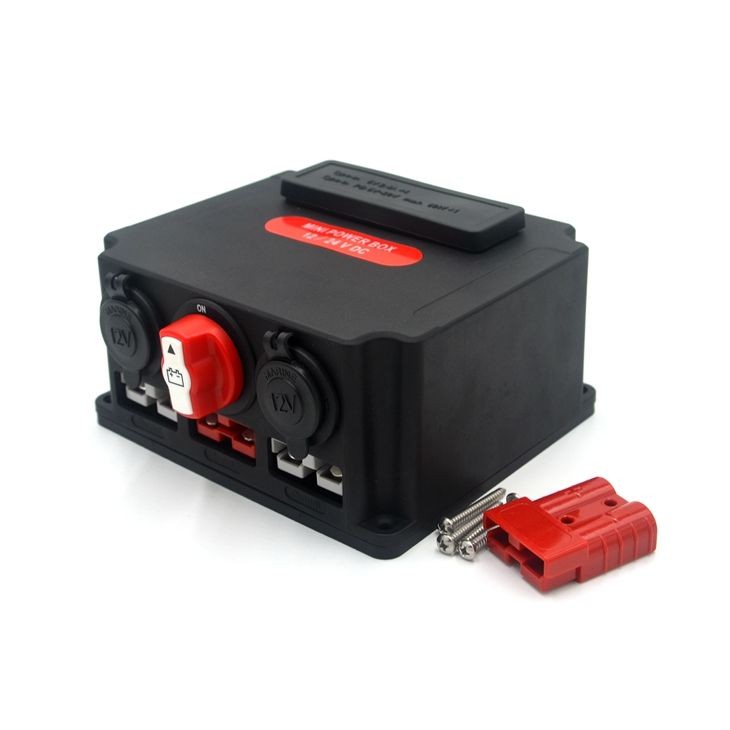

Mini DC Control Box makes battery to be DC power station with multi-DC ports, to power up to 10 DC appliances simultaneously. Plug & play design, connecting battery via one of Anderson input to power other DC ports. Included 2.4 A USB port *4,type-c port*1,cig socket*2,Anderson style output*2;
So you can power phones,tablets,fridges,ovens,lights, fans, air compressors...
Built-in blade fuses protect the Mini power box in the event of an overload or short circuit. 30 amp blade fuses for Anderson output connector,each cigarette socket is rated up to 10amp,10amp blade fuse for each cigarette socket.
