Rated current: 150A
Rated voltage: 48VDC Maximum
Disconnecting capacity: 3000A 48 Vdc
Environmental temperature: '-32 ° C to 82 ° C (-25 ° F to 180 ° F)
Storage temperature: -34 ° C to 149 ° C (-30 ° F to 300 ° F)
Stud size: ¼ "-28
Test standard: SAE J1627 J1171 UL1500 (Igniton Protected)
Net weight: 104g
Gross weight: 108g

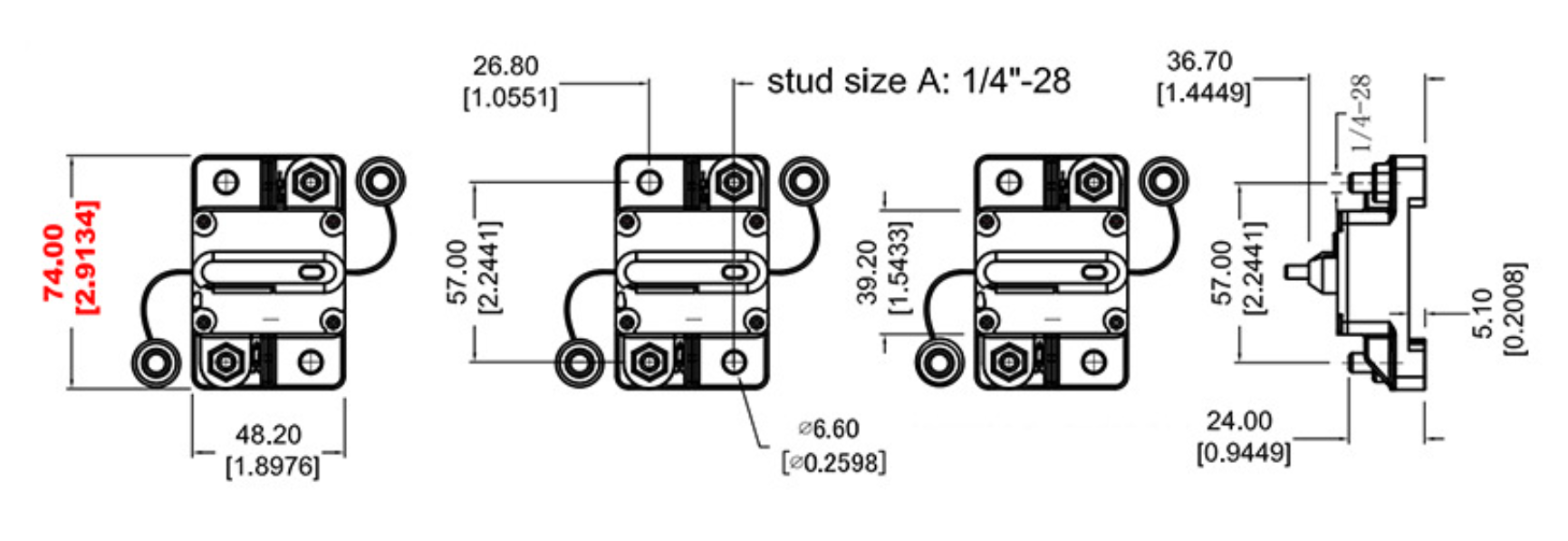

Size: 72 * 46 * 31mm
Purpose: Mainly used for electrical current overload protection in ships and RVs.
Function: To prevent excessive current and protect electrical appliances.

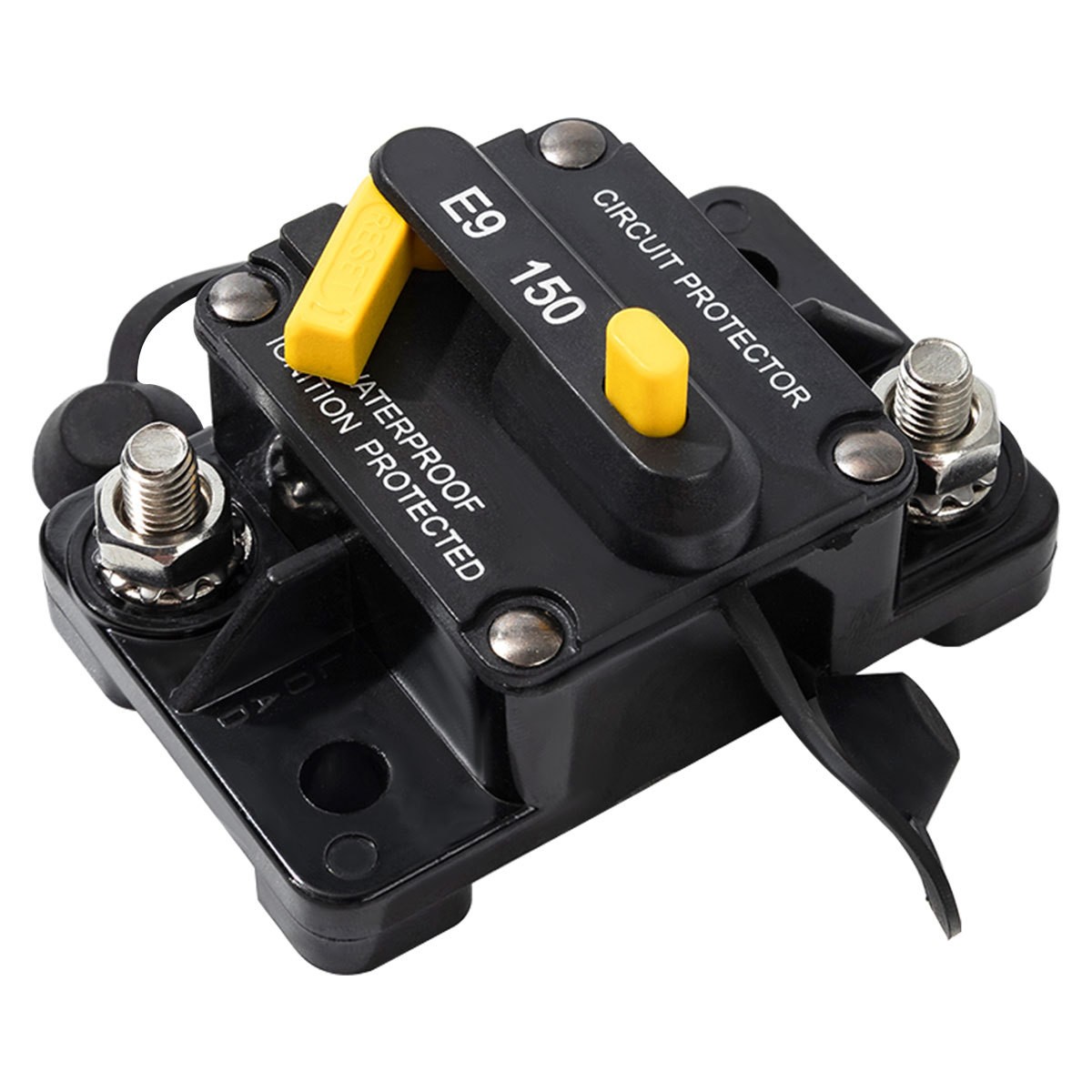

Operation method: Switch type power socket: Easy to operate, no need to remove when disconnecting, just press once to disconnect by yourself. To use normally, simply push back the yellow button on top of the disconnect button
