Product Description:
Specification:

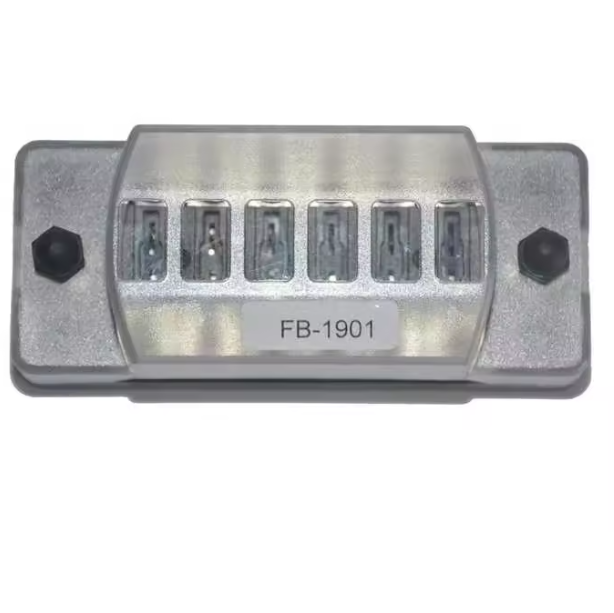

6 Circuits with Cover and Negative Bus
●ELECTRICAL：
Main line：
terminal rating ：M6 threaded studs
(75A 32V DC.max)
wire size ：#4-6 AWG
Single line：
terminal rating ：M 4 threaded studs
( 20A 32V DC.max)
wire size ：#12-16 AWG
●Material：
Base：PA66
Cap：PC
Terminal ：Nickel plated copper
Screw：Stainless steel
Label ：PP×70
Accepts ATO or ATC fuse 1A to 20A
Suitable for all marine, motor-home, automotive & motorsport applications
Max current 30AMP/way; DC32v
Cover material Clear PC mterial(With clear, vibration resistant & snap fit cover)
Type auto fuse box
Output Current rating per circuit / fuse Up to 30 amp
Input Current rating per box: Up to 100 amp
