Specification:
Continuous Rating :130AAC/150A DCMax、
Voltage: 300VAC/48V DC
Terminal Screw: M4x6
Terminal Stud : M6x2
Base:PA66
Conductor :Brass /Cap:PCSize:20.0x123.0x42.8mm

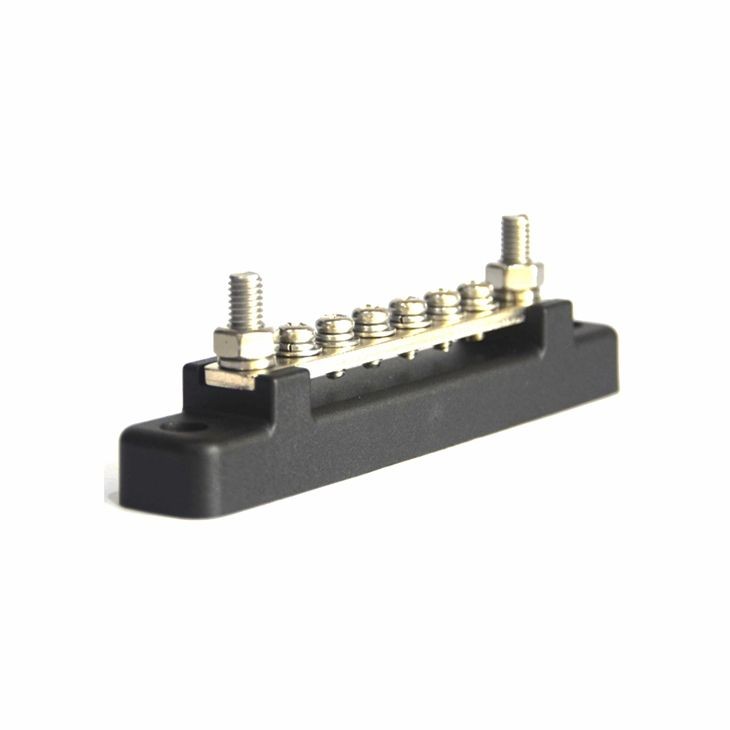

Ni-plated copper busbar plates offer low resistance, maximum conductivity and corrosion protection. Provides a neat finish to any installation for your car, boat, caravan and RV. Polycarbonate shields and stainless steel screws offer good heat and corrosion resistance. Bus bars are a way to connect incoming wires, increasing area, reducing energy consumption and lowering temperature rise. It has good versatility and strong practicality , reliable, time-saving and convenient.Studs and Screws :Stainless Steel Bus Bar : Ni-plated copperBase : Flame Retardant ABSTerminal screw: 6 * M4 (M4 stainless steel screw) Terminal studs: 2 * M6 (M6 stainless steel screws)
