Product Name: 6P rectangular fuse box (independent circuit) M4 screw terminal with fuse strip terminal block
Product model: AOA1940-Z
Product weight: 195g
Product size: 116 * 50 * 45.5mm
Fuse box packaging size: 123 * 56 * 52mm
Rated voltage: DC 32V MAX
Single current: MAX 30A
Screw size: M4 (# 8-32)

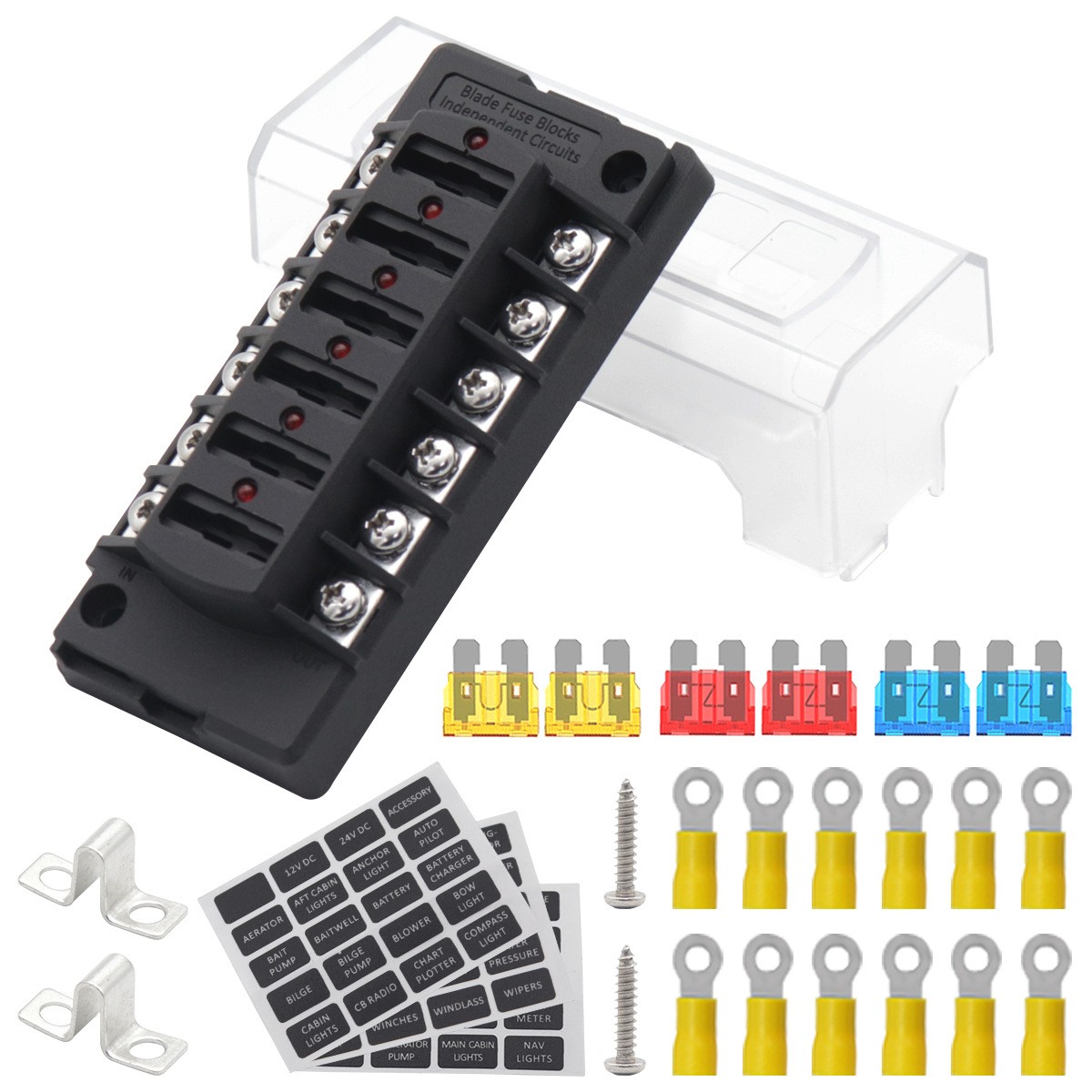

Product List: 6-way fuse box * 1 label paper 3 sheets (20 stickers per sheet); Fixed screws * 2; Insurance film: Medium insurance film 5A * 2 10A * 2 15A * 2
Applicable fuse types: medium fuse, medium manual reset fuse
Equipped with an indicator light design, when your fuse is blown, the indicator light will turn on for easy inspection and maintenance.
Strong applicability: suitable for use in 12-32V cars, yachts, etc

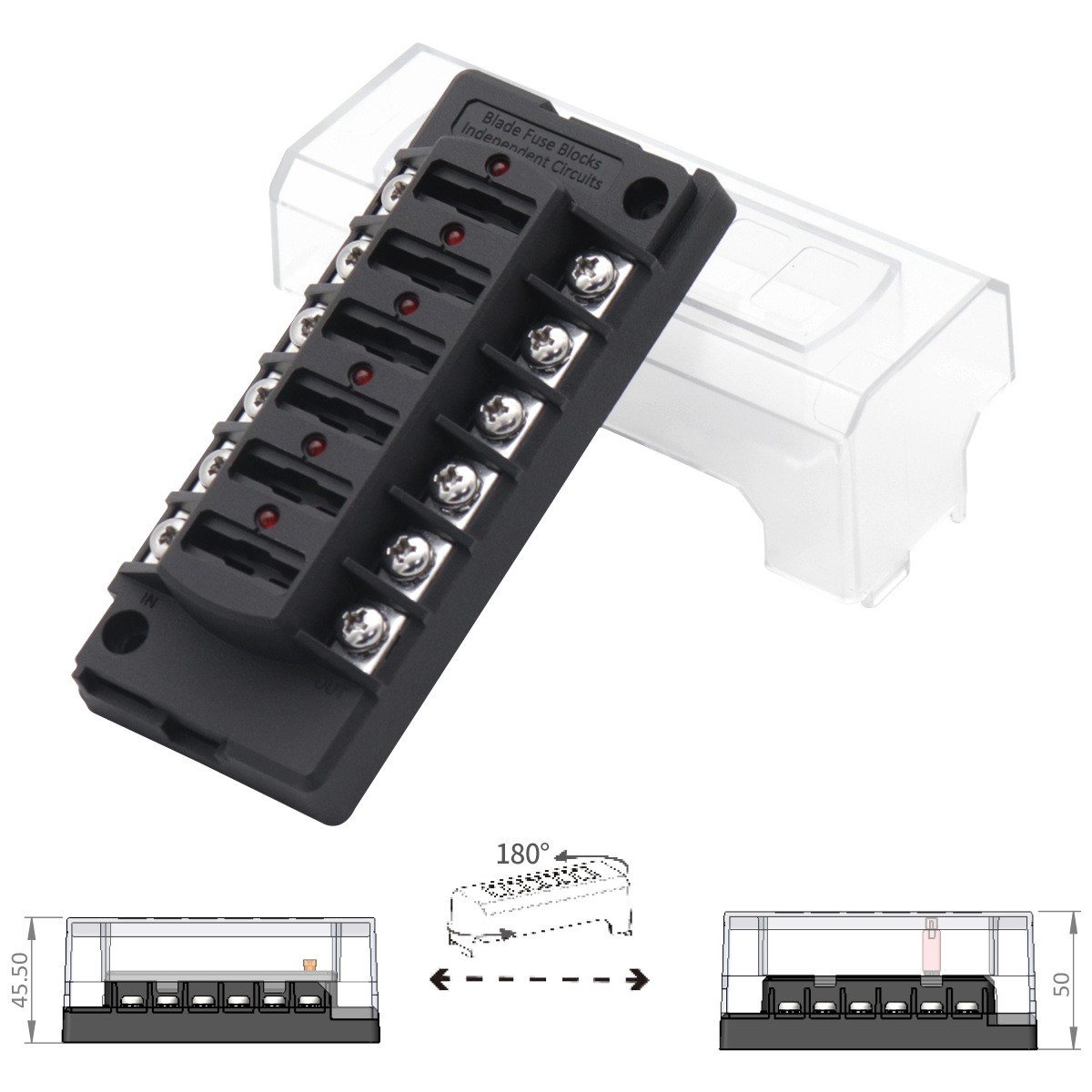

Rotate the transparent cover 180 ° and adjust the height of the fuse box cover according to the size of the fuse you need.

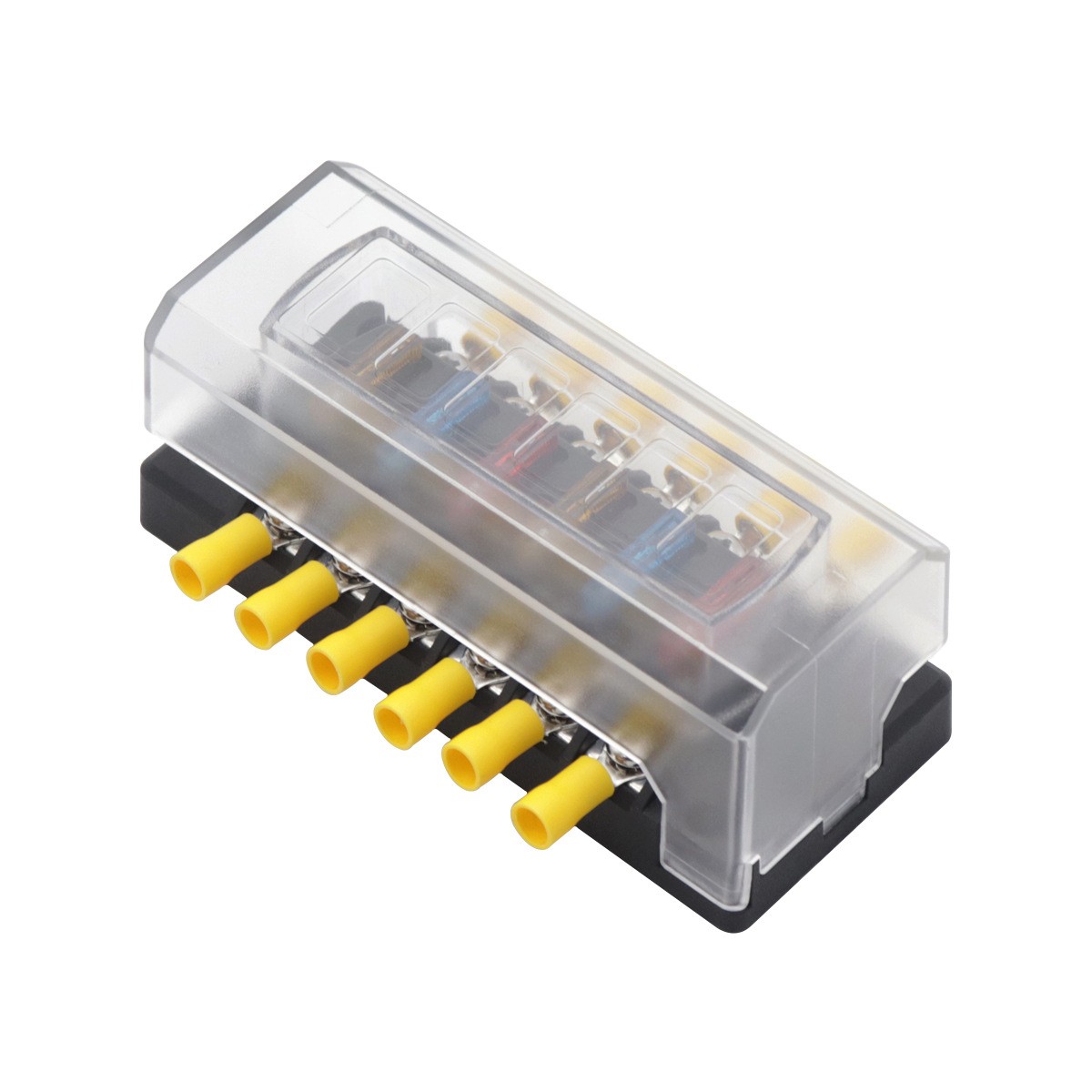

Designed with transparent dust cover to support the use of height increasing fuses
Application scope: Suitable for circuit systems such as cars, ships, yachts, RVs, portable power boxes, etc. with 32Vdc (including 12Vdc/24Vdc) or less
