Marine Bus Bar

  • M10 busbar 4-channel T2 copper busbar（FA1149CR-4P）
  • M10 busbar 4-channel T2 copper busbar（FA1149CR-4P）
M10 busbar 4-channel T2 copper busbar（FA1149CR-4P）M10 busbar 4-channel T2 copper busbar（FA1149CR-4P）

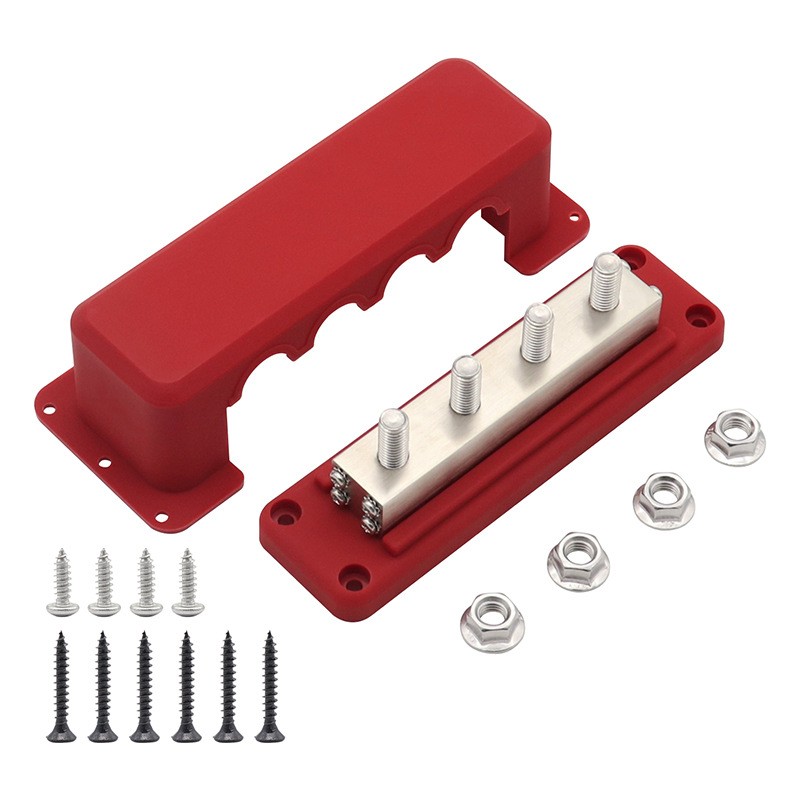

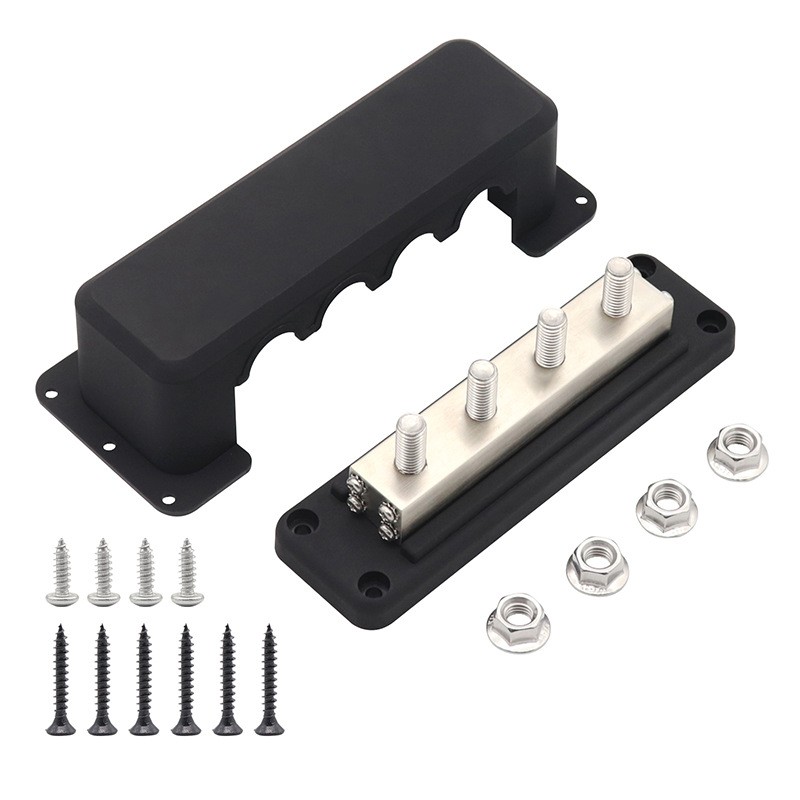

M10 busbar 4-channel T2 copper busbar（FA1149CR-4P）

Product Description:

Product Name: High current busbar

Continuous current; 600A

Rated voltage: DC48V

Conductor material: T2 nickel plated purple copper

Bottom and cover materials: Nylon/fiberglass reinforced

Terminal stud: 4xM10

Screw stud: 304 stainless steel

Product gross weight: 950G

Product size: 177.8x51x53.5mm

Upper cover size: 203.8x77.2x54.6mm
