Push Button Switch

  • 12V Dual Function Push Switch ON OFF(FPS-1819)

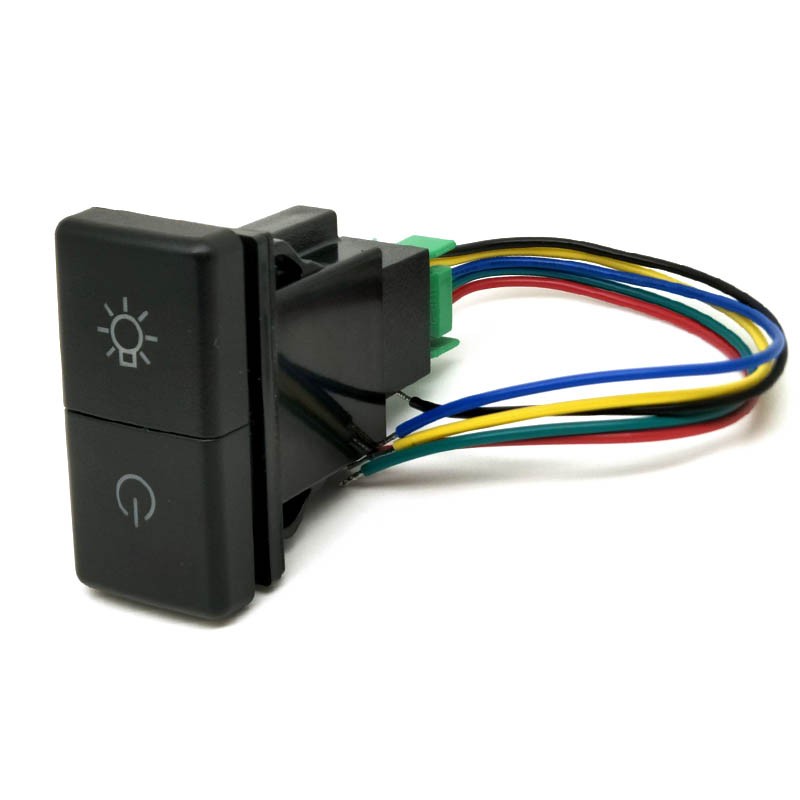

12V Dual Function Push Switch ON OFF(FPS-1819)

12V Dual Function Push Switch ON OFF(FPS-1819)

    Size of Hole ：21.2mm×37.2mm

  • INQUIRY
Product Description:

Description:

Switch Rating ： 12V~24V 0.5A DC

Size of Hole ：21.2mm×37.2mm

Max. Current: 0.5A DC
Max. Voltage: 24V DC

Contact resistance:50mΩ max

Insulation resistance:DC 500V 500MΩ Min
Dielectric Strength:AC 1500V 1minute
Operating Temperature:-25℃~~ +55℃
Electrical Life: 50000 make and break cycles at full load
Installation dimensions is : 21.2*37.2mm (the same as Carling style rocker switches)
