Product material: ABS environmentally friendly material shell, all copper wire
Product size: 20.8 * 38.75 * 59
Product input 12V 0.5A
Product color: Black

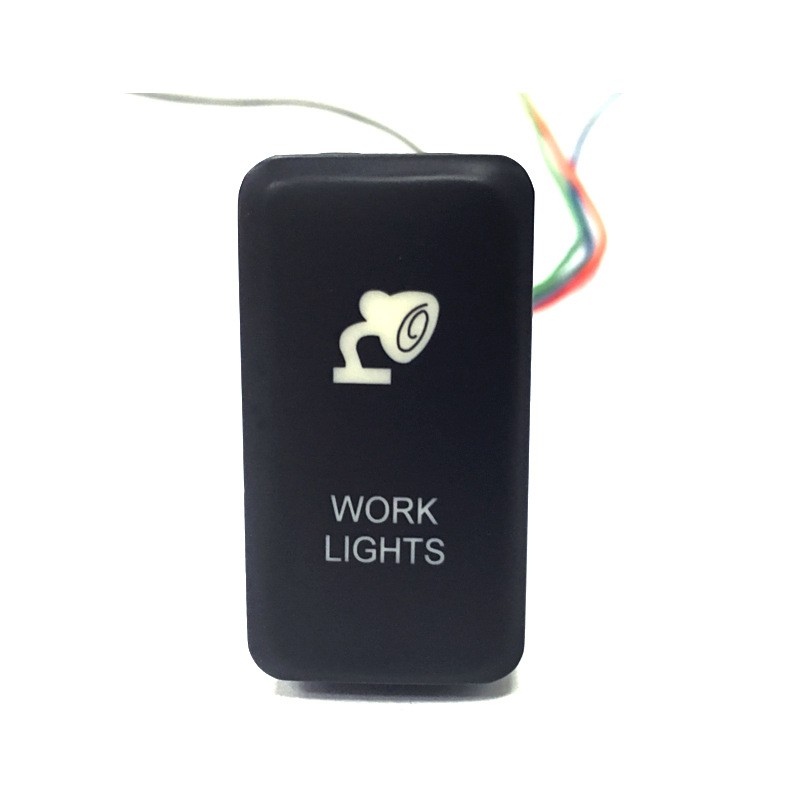

The product can be used as a fog light switch, width indicator light switch, and retrofit light switch
Product line length: 200mm
Scope of use: Mainly suitable for Toyota cars, Toyota Hilux, Cruiser, VIGO. Modification buttons
Product advantages: 1. The product has a simple appearance and is equipped with LED display lights
2. The product shell is made of ABS environmentally friendly material, ensuring quality assurance
3. Copper wire has better conductivity and longer lifespan

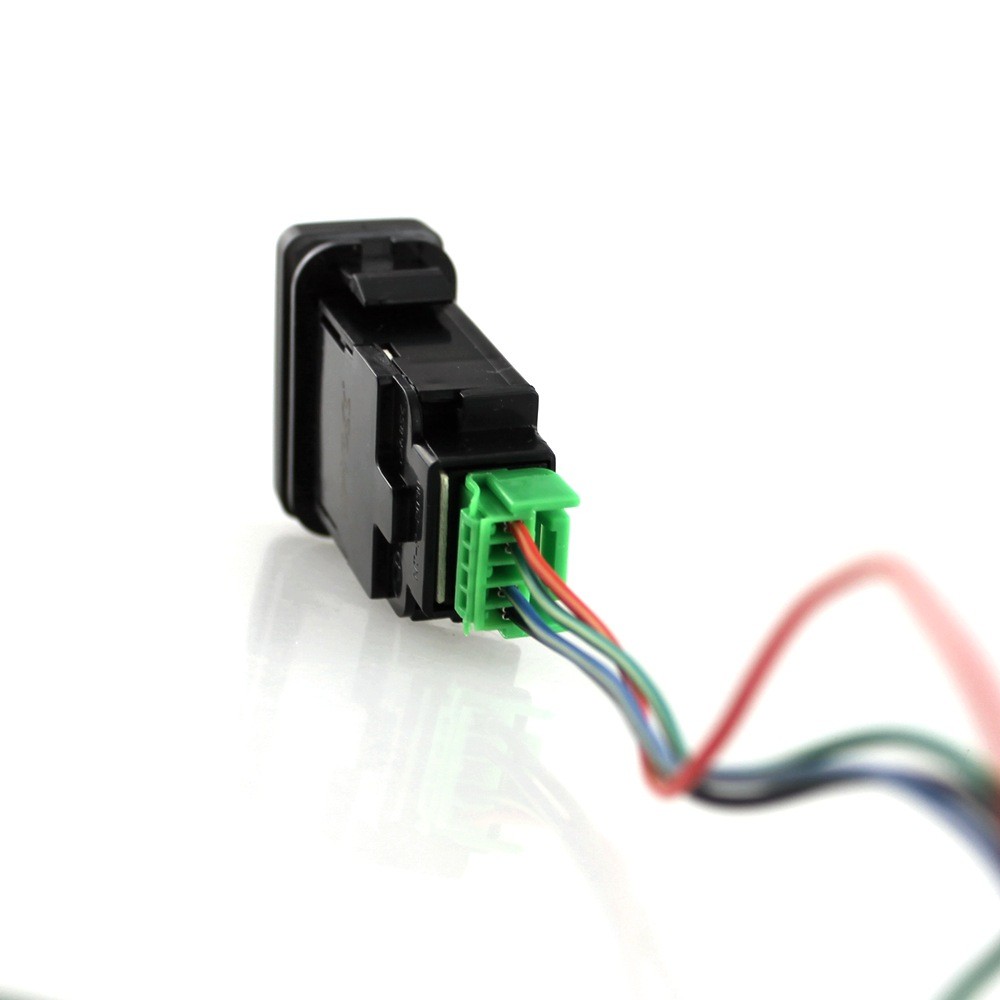

Wiring method: Black power supply negative, red power supply positive, green load output positive, blue input positive, black power supply negative, red power supply positive, green load output positive, blue input positive
Wiring method:
1. If the blue wire is not connected, when turned on, the switch only lights up the pattern and not the text (just because the pattern is slightly bright)
2. Connect the blue wire to the power supply, and when turned on, the switch pattern text will light up; When turned off, the switch text also lights up.
